Materials：all kinds of corrugated paperboard(kraft and bleeched kraft、semi-coated board、honey comb panel）
Accuracy：Basic Definition 600dpi or above, single-pass
Capacity：Up to 150m/min
PDF
Video

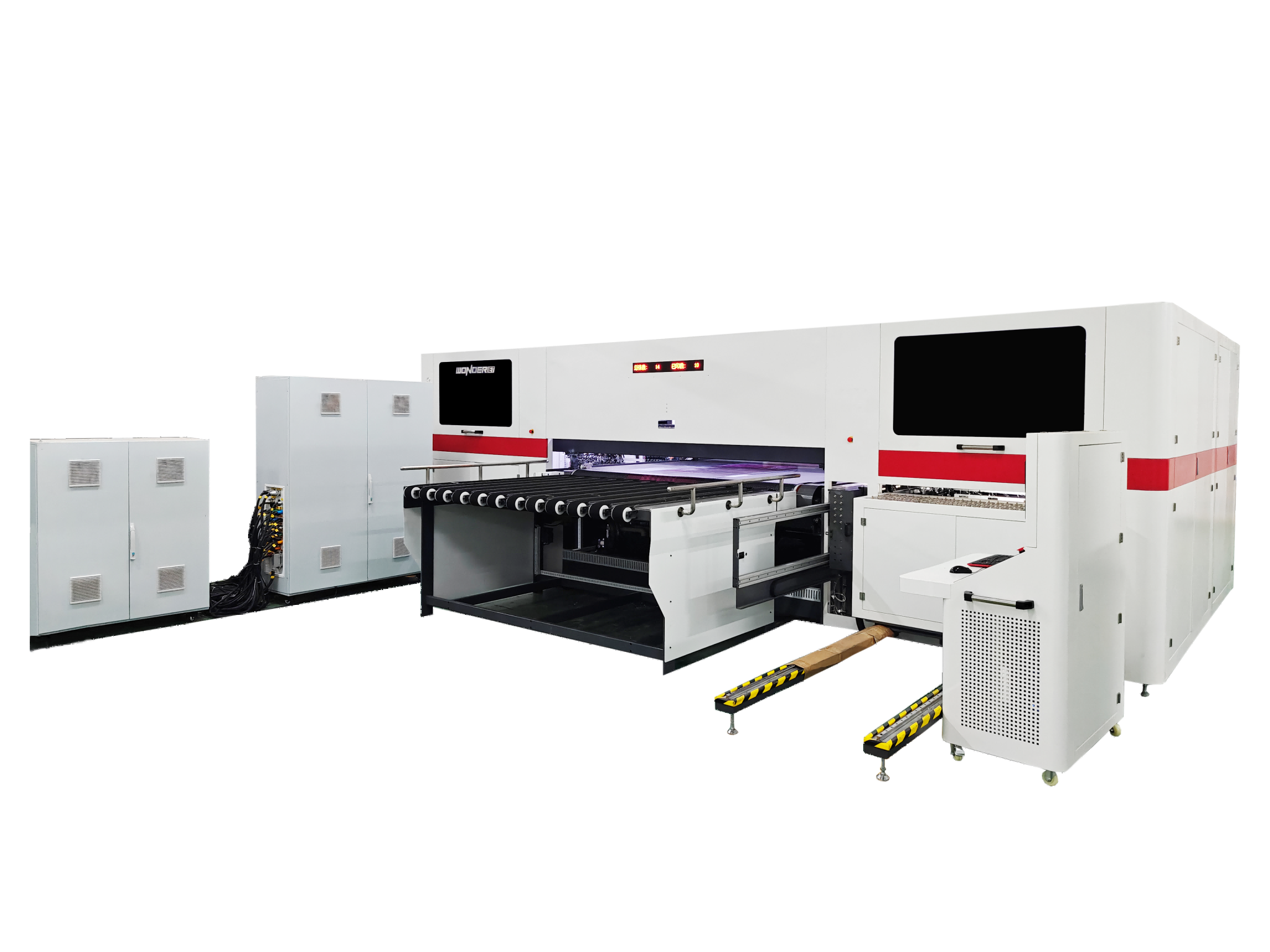

WDUV200 series UV corrugated high-speed digital printing machine, the physical reference accuracy is 600dpi or above, the high-quality printing effect makes the image more vivid and beautiful, the picture is more layered, and achieves high-quality printing that surpasses flexo printing and comparable to offset printing.The highest printing speed can be 150 m/s, one machine achieves the perfect combination of speed and precision, which can replace about 70% of traditional printing.
Article NO. | CMYK:WDUV200-64A/92A/120A,WDUV200-64A+/92A+/120A+,etc |
Printing efficiency | 600*300dpi, WDUV200 Max 1.5m/s,WDUV200+ Max 2.2m/s; |
Printhead | Piezoelectric high-procision printhead |
Printhead quantity | Be ordered with printing width |
Ink type | Special UV curable ink |
Color model | Cyan,Magenta,Yellow,Black, + White |
Medium distance | 2mm-4mm |
Printing resolution | ≥600*300 dpi |
Material format | Below 1800 mm * 2400 mm under auto feeding |
Printing format | Below (X)mm*2400mm under auto feeding (X=printhead quantity of single color plus 53.2mm) |
Drying speed | Dry once print out |
Working environment | 15ºC-32ºC Indoor，Humidity 40%-70% |
Ink supply | Automatic continuous ink supply |
Feeding mode | Automatic feeding |
Material thickness | 1.5mm-20mm |
Thermostat system | Thermostat system with patent |
Operate system | Professional RIP system,professional printing system,Windows 7 system with 32 bit operating system or above |
Rated power | About 18 KW power：AC380±10%，50-60HZ |
Machine size | L*W*H 7215*5725*1852 (mm) |
Weight | Net wight:6500KG |
©Above information just for reference, Shenzhen Wonder Digital Technology Co.,Ltd. keep all ringhts reserved.
Subject to change without notice, final information subject to the contract.
