Materials：all kinds of corrugated paperboard(kraft and bleeched kraft、honey comb panel）
Accuracy：Basic Definition 600dpi, multi-pass
Capacity：Up to 1400㎡/h
PDF
Video

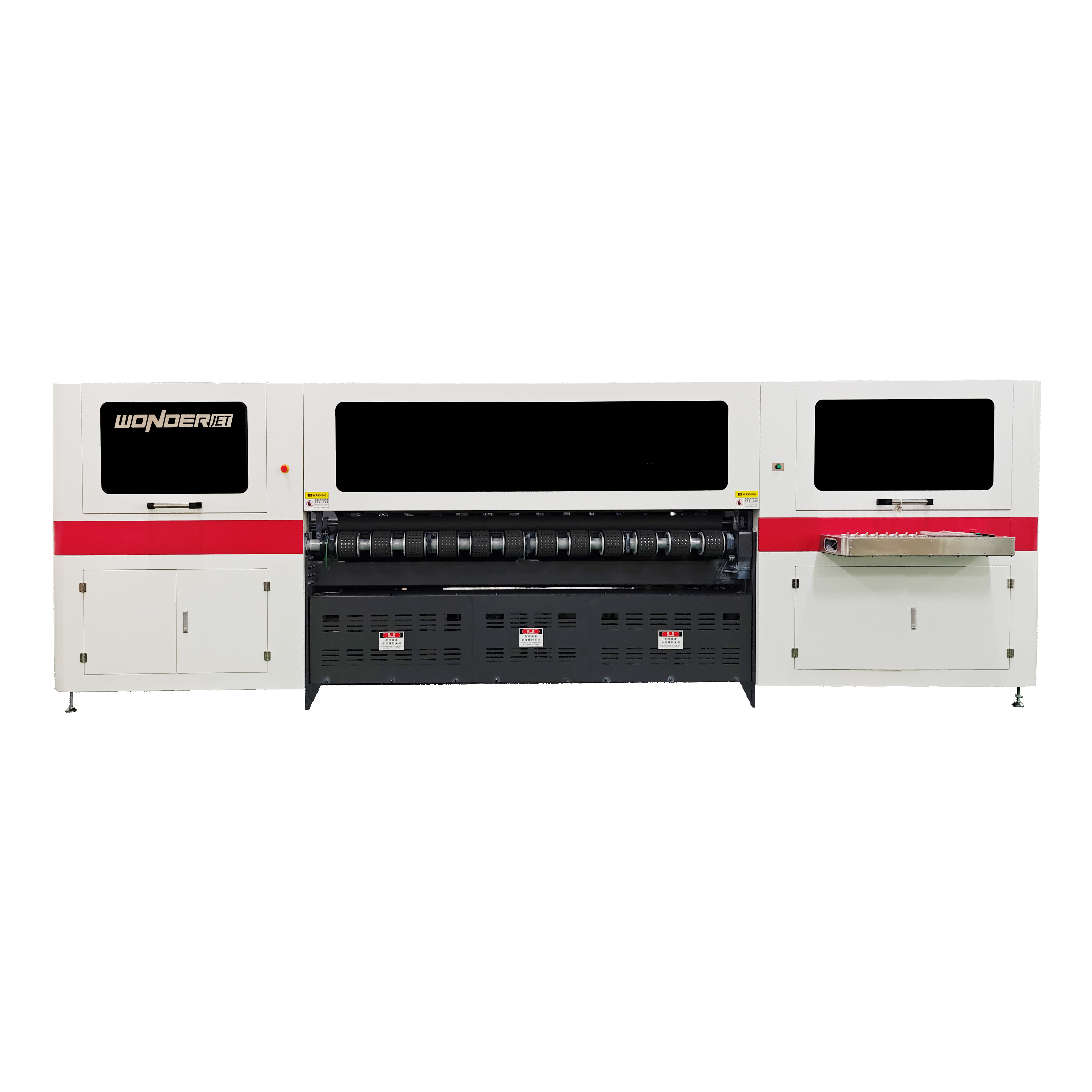

WD250 series Muti Pass scanning high quality digital printer,inkjet printing, printing width max 2500mm, length no limit,basic printing resolution 600dpi-1200dpi, printing speed more fast, up to 700㎡/h-1400㎡/h, production efficiency around 1-1200 PCS/hour, cost-effective, your best selection for small and personalized orders.
Article NO. | WD250-16A+ |
Printhead | Iudustrial-grade Mirco-piezo hightest printhead |
Printhead quantity | 16pieces |
Ink type | Special water-based dye ink, special water-based pigment ink |
Color model | Cyan,Magenta,Yellow,Black |
Medium distance | 2mm-4mm |
Printing resolution | ≥360*600 dpi |
Printing efficiency | Max 1400㎡/hour |
Printing format | 2500mm |
Drying speed | Liner-board can be dry once print out, able to print on semi coated board if connect with drying system(optional) |
Working environment | 20ºC-25ºC Indoor，Humidity 50%-70% |
Ink supply | Automatic ink supply |
Feeding mode | Automatic leading edge feeding,suction platform |
Material thickness | 1.5mm-35mm（max can be ordered to 50mm) |
Operate system | Professional RIP system,professional printing system,Win10/11 system with 64 bit operating system or above |
Power supply | About 18 KW power：AC380±10%，50-60HZ |
Machine size | L*W*H：4850*6100*1751(mm) |
Weight | 5500KGS |
©Above information just for reference, Shenzhen Wonder Digital Technology Co.,Ltd. keep all ringhts reserved.
Subject to change without notice, final information subject to the contract.
